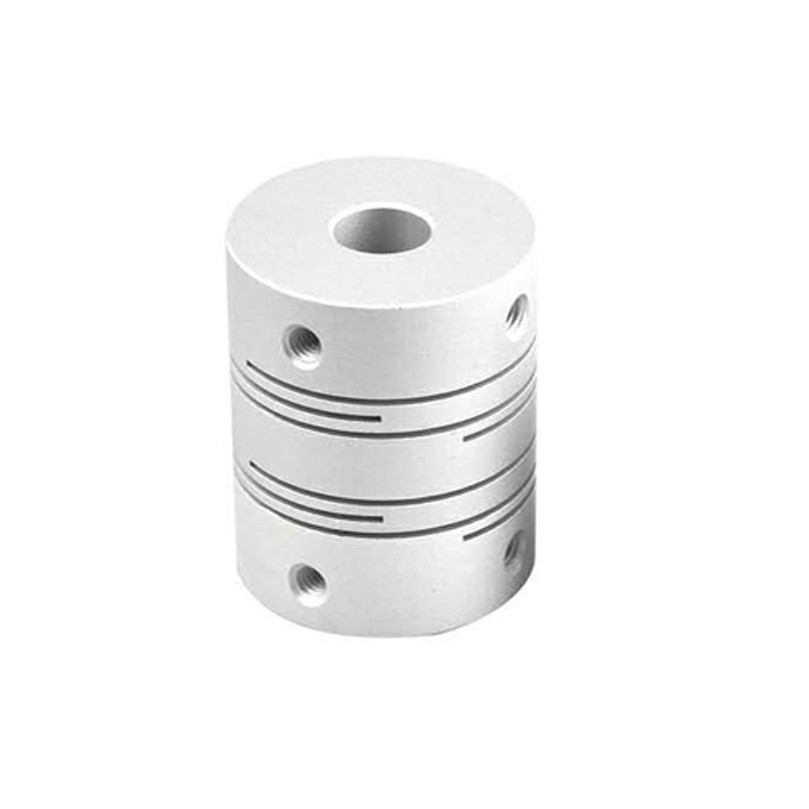

Description
| Name | Material | Surface process | Accessories |
| Coupling | Aluminum Alloy | Clear Anodize | Hex Socket Head Cap Screw |
| Elastic element | Polyurethane |
|

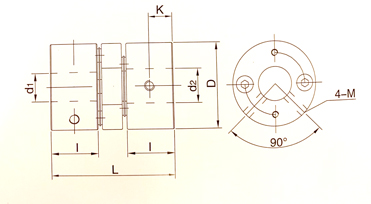

Part Number |
d1 |
d2 |
L |
I |
K |
M |
Slip Torque (N.m) |
|
|
Type |
D |
|||||||
|
JAG1-S |
16
|
4 |
4,5 |
23 |
6.4 |
3.0 |
M3 |
0.7 |
|
5 |
5,6,8 |
|||||||
|
20 |
5 |
5,6,8 |
26 |
7 |
3.0 |
|||
|
6 |
6,6.35,8,10 |
|||||||
|
25 |
6 |
6,6.35,8,10 |
31 |
8 |
4.0 |
M4 |
1.7 |
|
|
6.35 |
8,10 |
|||||||
|
8 |
8,10,12 |
|||||||
|
32 |
10 |
10,11,12,14 |
41 |
11 |
6.0 |
|||
|
12 |
12,14 |
|||||||
|
Part Number |
Allowable Torque (N · m) |
Max. Rotational Speed (r / min) |
Moment of Inertia (kg · m2) |
Angular Misalignment ( ° ) |
Allowable Axial Misalignment (mm) |
Mass (g) |
|
JAG1-S16 |
0.5 |
10000 |
6.5x10-7 |
2 |
±0.4 |
9 |
|
JAG1-S20 |
1 |
1.5x10-6 |
±0.4 |
16 |
||
|
JAG1-S25 |
2 |
4.2x10-6 |
±0.5 |
27 |
||
|
JAG1-S32 |
4 |
6.5x10-5 |
±0.5 |
64 |
