Description
Parts
[ M ]Material
[ S ]Surface Treatment
[ A ]Accessories
Hub
Aluminum Alloy
Clear Anodize
Set Screw
Flex Element
Stainless steel
-
|

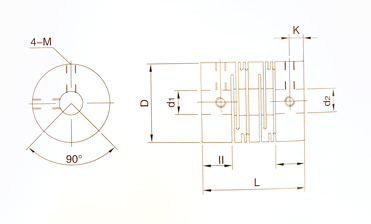

Part Number |
d1,d2 (d1≤d2) |
L |
I |
F
|
A |
M |
Slip Torque (N.m) |
|
|
Type |
D |
|||||||
|
JAM2-S |
20 |
4,5,6,6.35,8 |
28.8 |
11 |
5.5 |
6.4 |
M3 |
0.7 |
|
26 |
5,6,6.35,8,10,11 |
34.1 |
11.9 |
5.5 |
9.0 |
|||
|
29 |
5,6,6.35,8,10,11,12,14 |
34.3 |
11.9 |
5.5 |
10.5 |
M4 |
1.7 |
|
|
33 |
6,8,10,11,12,14,15,16 |
40.0 |
13.0 |
6.5 |
12.0 |
|||
|
39 |
8,10,11,12,14,15,16,18 |
49.4 |
16.0 |
8.0 |
14.0 |
M5 |
4.0 |
|
|
Part Number |
Allowable Torque (N · m) |
Max. Rotational Speed (r / min) |
Moment of Inertia (kg · m2) |
Angular Misalignment ( ° ) |
Allowable Axial Misalignment (mm) |
Static Torsional Spring Constant (N · m / rad) |
Mass (g) |
|
JAM2-S20 |
1 |
10000 |
1.1x10-6 |
2 |
±0.20 |
550 |
19 |
|
JAM2-S26 |
2 |
3.3x10-6 |
±0.20 |
700 |
33 |
||
|
JAM2-S29 |
3 |
5.5x10-6 |
±0.30 |
1200 |
44 |
||
|
JAM2-S33 |
5 |
1.1x10-5 |
±0.40 |
1500 |
65 |
||
|
JAM2-S39 |
8 |
2.7x10-5 |
±0.50 |
3350 |
118 |
