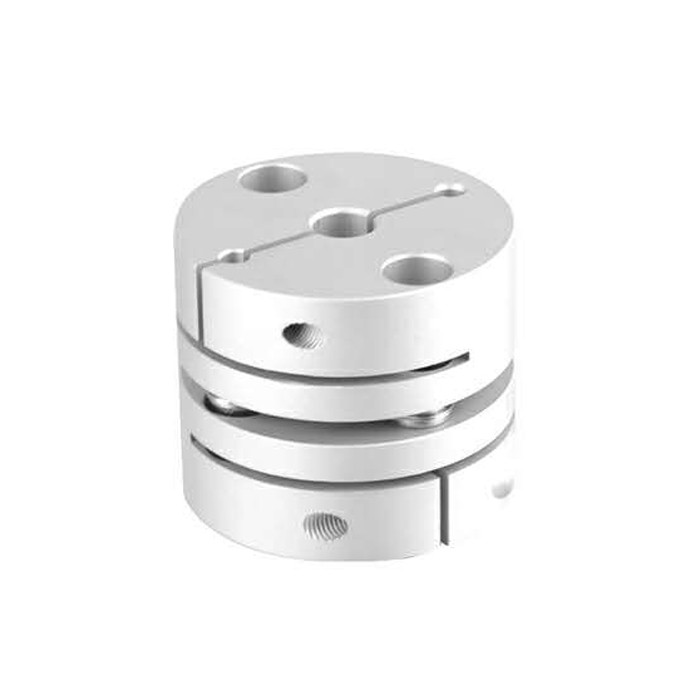

Description
|
Parts |
[ M ]Material |
[ S ]Surface Treatment |
[ A ]Accessories |
|
Hub |
Aluminum Alloy |
Clear Anodize |
Set Screw |
|
Flex Element |
Stainless steel |
- |
|

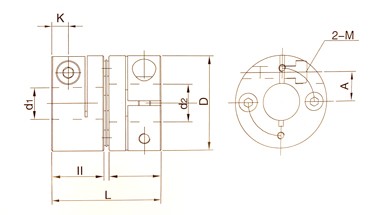

Part Number |
d1,d2 (d1≤d2) |
L |
I |
F
|
A |
M |
Slip Torque (N.m) |
|
|
Type |
D |
|||||||
|
JAM1-C |
20 |
4,5,6,6.35,8 |
28.8 |
11 |
3.5 |
6.4 |
M2.5 |
1.0 |
|
26 |
5,6,6.35,8,10,11 |
34.1 |
11.9 |
3.5 |
9.0 |
|||
|
29 |
5,6,6.35,8,10,11,12,14 |
34.3 |
11.9 |
3.5 |
10.5 |
|||
|
33 |
6,8,10,11,12,14,15,16 |
40.0 |
13.0 |
4.0 |
12.0 |
M3 |
1.5 |
|
|
39 |
8,10,11,12,14,15,16,18 |
49.4 |
16.0 |
4.75 |
14.0 |
M4 |
4.0 |
|
|
Part Number |
Allowable Torque (N · m) |
Max. Rotational Speed (r / min) |
Moment of Inertia (kg · m2) |
Angular Misalignment ( ° ) |
Allowable Axial Misalignment (mm) |
Static Torsional Spring Constant (N · m / rad) |
Mass (g) |
|
JAM1-C20 |
1 |
10000 |
8.8x10-7 |
2 |
±0.10 |
700 |
16 |
|
JAM1-C26 |
2 |
2.5x10-6 |
±0.10 |
1000 |
24 |
||
|
JAM1-C29 |
3 |
4.1x10-6 |
±0.15 |
1350 |
31 |
||
|
JAM1-C33 |
5 |
7.7x10-6 |
±0.20 |
2000 |
44 |
||
|
JAM1-C39 |
8 |
1.9x10-5 |
±0.25 |
4250 |
82 |
