Description

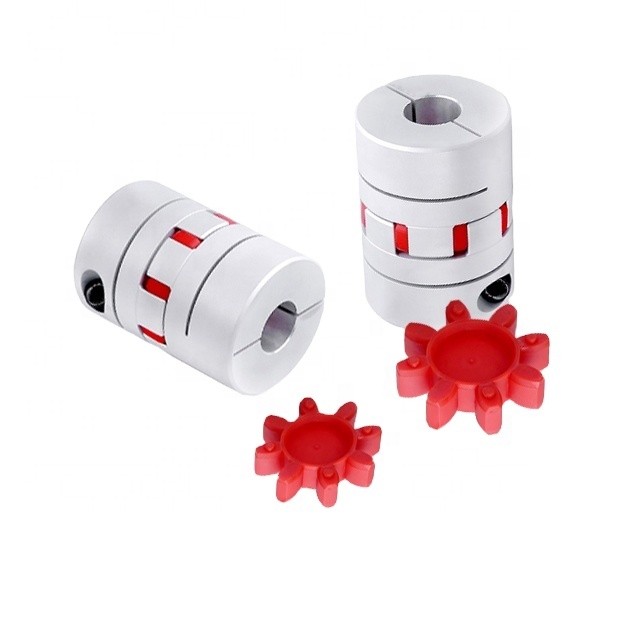

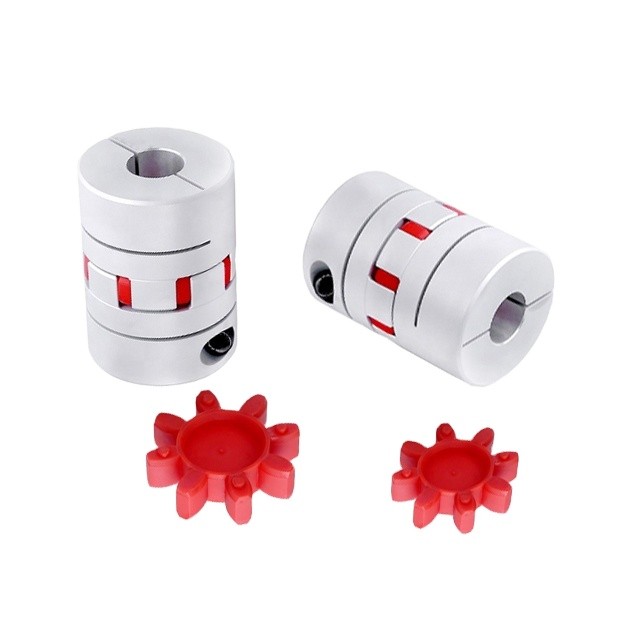

we are specailly in the Jaw Couplings
Parameter Size
|
Item No. |

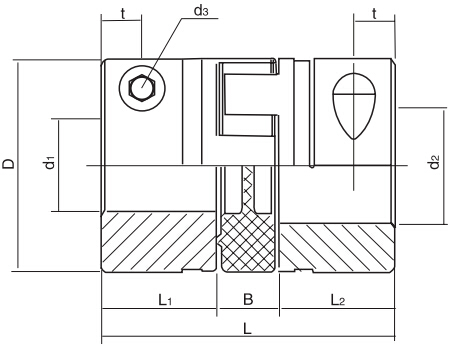

Main dimensions（mm） | Mounting hole | |||||
|
Aluminum alloy)\Steel |
D | L | L₁L₂ | B | t | d₁d₂ | d₁ |
|
HY8330.2-1\(8~14)x30 |
30 | 41 | 14 | 13 | 7 |
8~14 |
M4 |
|
HY8330.2-1\(14~22)x40 |
40 | 66 | 25 | 16 | 10 |
14~22 |
M6 |
|
HY8330.2-1\(18~28)x55 |
55 | 76 | 30 | 16 | 10.5 |
18~28 |
M6 |
|
HY8330.2-1\(20~36)x65 |
65 | 90 | 35 | 20 | 11.5 |
20~36 |
M8 |
|
HY8330.2-1\(22~45)x80 |
80 | 114 | 46 | 22 | 18 |
20~45 |
M8 |
