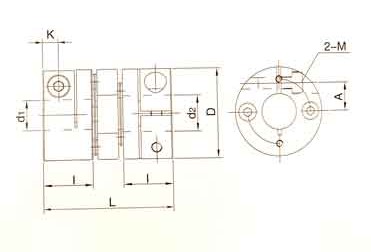

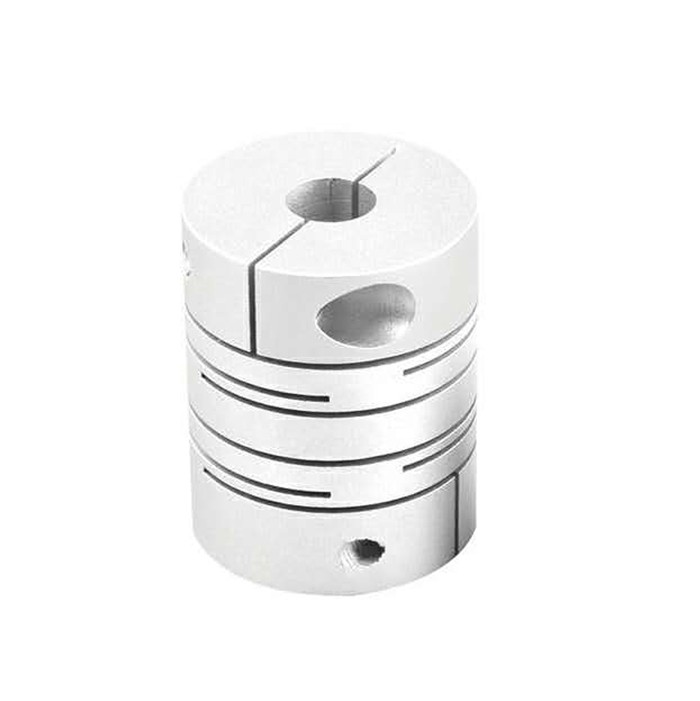

Slit Type Flexible Coupling JAG1-C

Part Number

d1

d2   (d1≤d2)

L

I

K

A

M

Slip Torque

(N.m)

Type

D

16

4

4,5

23

6.4

3.2

5.5

M3

1.0

JAG1-C

5

5,6,8

20

5

5,6,8

26

7

3.4

6.5

6

6,6.35,8,10

25

6

6,6.35,8,10

31

8

4.0

8.5

M3

1.5

6.35

8,10

8

8,10,12

32

10

10,11,12,14

41

11

5.5

10.5

M4

3.5

12

12,14

Part Number

Allowable Torque (N · m)

Max. Rotational Speed (r / min)

Moment of Inertia (kg · m2)

Angular Misalignment ( ° )

Allowable Axial Misalignment (mm)

Mass (g)

JAG1-C16

0.5

10000

7.0x10^-7

2

±0.40

9

JAG1-C20

1

1.6x10^-6

±0.40

18

JAG1-C25

2

4.4x10^-6

±0.50

28

JAG1-C32

4

1.7x10^-5

±0.50

66
