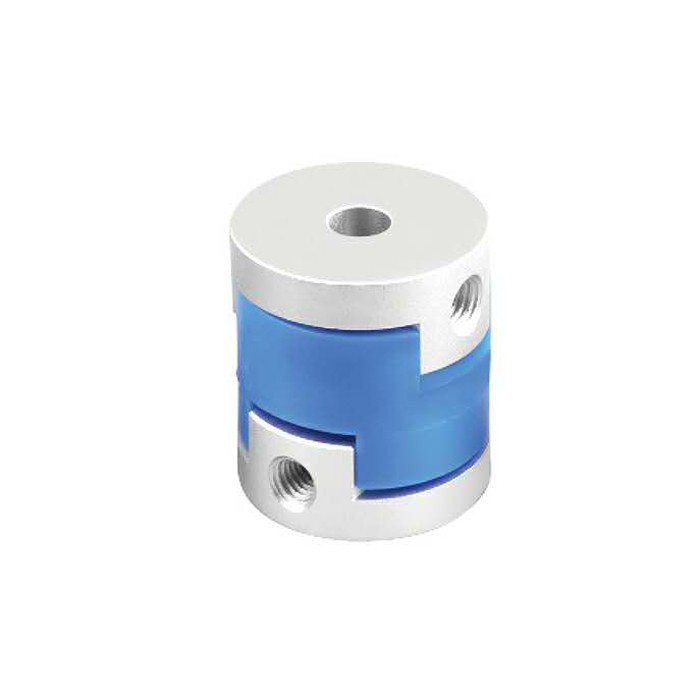

Oldham Flexible Coupling JAH1-S

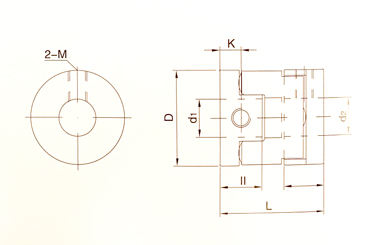

Part Number

d1,d2   (d1≤d2)

L

I

K

M

Slip Torque

(N.m)

Type

D

JAH1-S

16

3,4,5,6,6.35

18

7

3.5

M3

0.7

20

4,5,6,6.35,8

23

9

4.5

M4

1.7

25

5,6,6.35,8,10

28

11

5.5

M5

4.0

32

8,10,12,14

33

25

6.5

M6

7.0

Part Number

Allowable Torque (N · m)

Max. Rotational Speed (r / min)

Moment of Inertia (kg · m2)

Angular Misalignment ( ° )

Allowable Axial Misalignment (mm)

Mass (g)

JAH1-S16

0.7

10000

2.2x10^-7

3

+1/0

6

JAH1-S20

1.2

6.9x10^-7

+1.5/0

13

JAH1-S25

2.0

2.1x10^-6

+2.0/0

23

JAH1-S32

4.5

6.5x10^-6

+2.5/0

45
