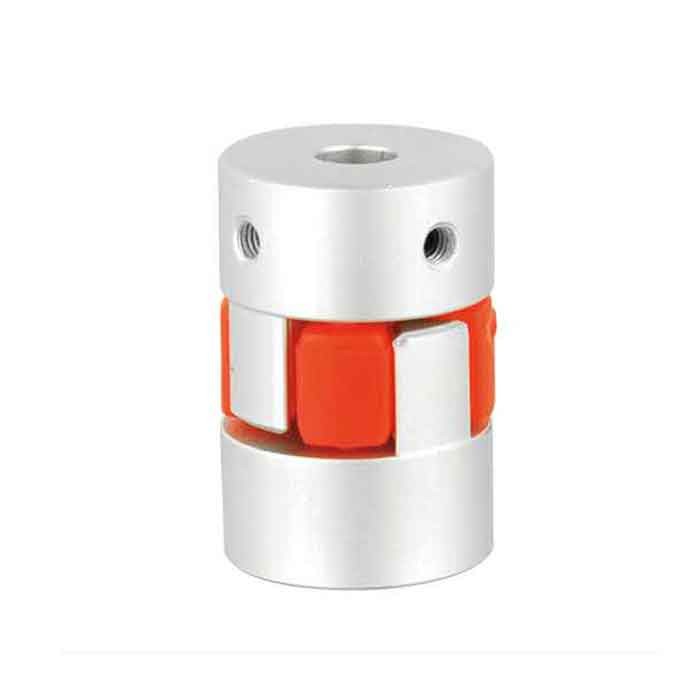

Description
|
Parts |
[ M ]Material |
[ S ]Surface Treatment |
[ A ]Accessories |
|
Hub |
Aluminum Alloy |
Clear Anodize |
Set Screw |
|
Spacer |
Polyurethane |
- |
|

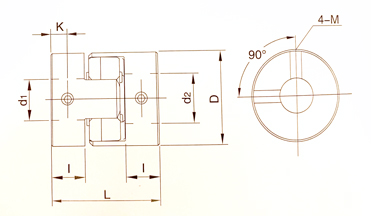

Part Number |
d1,d2 (d1≤d2) |
Elastic element |
L |
I |
C |
K |
M |
Slip Torque (N.m) |
|
|
Type |
D |
||||||||
|
JAT1-S |
14 |
3,4,5,6 |
Red 98A |
22 |
7 |
1 |
3.5 |
M3 |
0.7 |
|
20 |
5,6,6.35,7,8 |
30 |
10 |
5.0 |
|||||
|
30 |
7,8,10,11,12,14 |
35 |
11 |
1.5 |
5.5 |
M4 |
1.7 |
||
|
40 |
10,11,12,14,15,16 |
66 |
25 |
2 |
12.5 |
M5 |
4.0 |
||
|
Part Number |
Allowable Torque (N · m) |
Max. Rotational Speed (r / min) |
Moment of Inertia (kg · m2) |
Angular Misalignment ( ° ) |
Allowable Axial Misalignment (mm) |
Static Torsional Spring Constant (N · m / rad) |
Mass (g) |
|
JAT1-S14 |
2 |
45000 |
2.1x10-7 |
1 |
+0.6/0 |
22 |
7.3 |
|
JAT1-S20 |
5 |
31000 |
1.0x10-6 |
+0.8/0 |
55 |
18 |
|
|
JAT1-S30 |
12.5 |
21000 |
5.9x10-6 |
+1.0/0 |
130 |
46 |
|
|
JAT1-S40 |
17 |
15000 |
4.0x10-5 |
+1.2/0 |
1200 |
150 |
